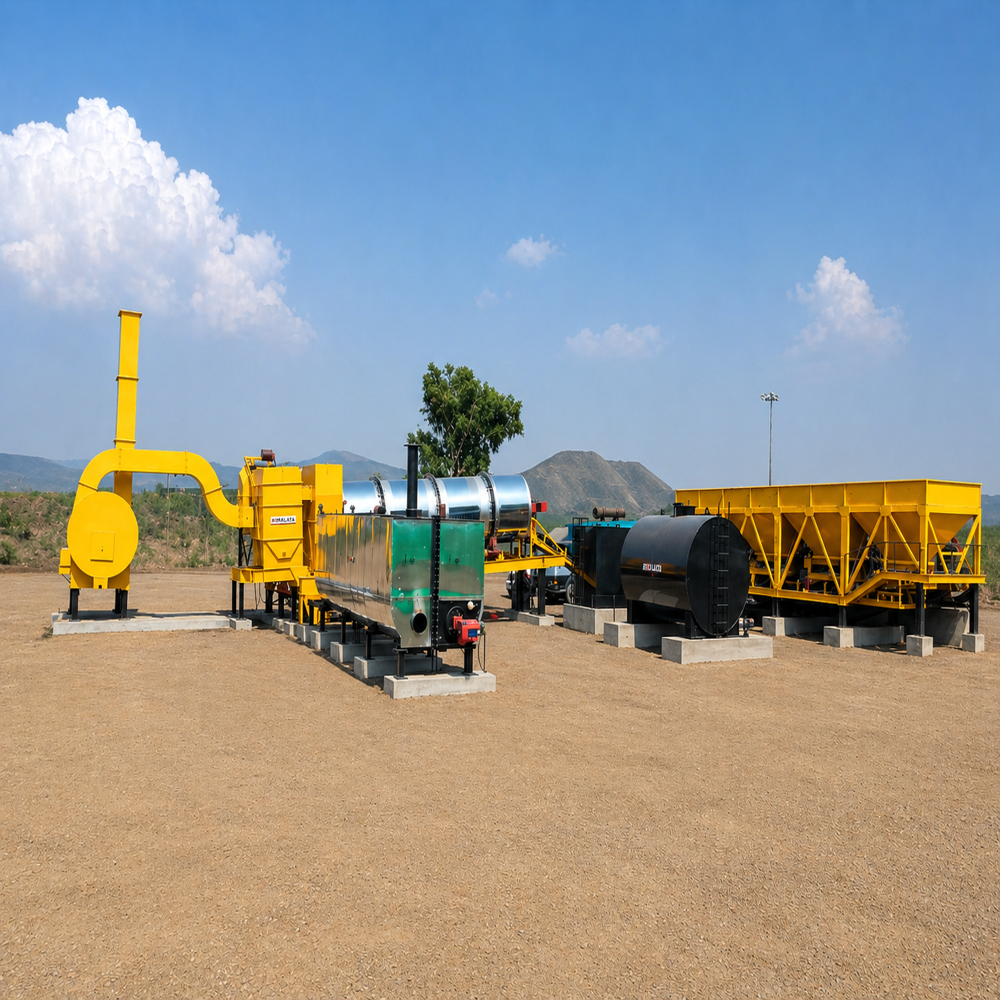

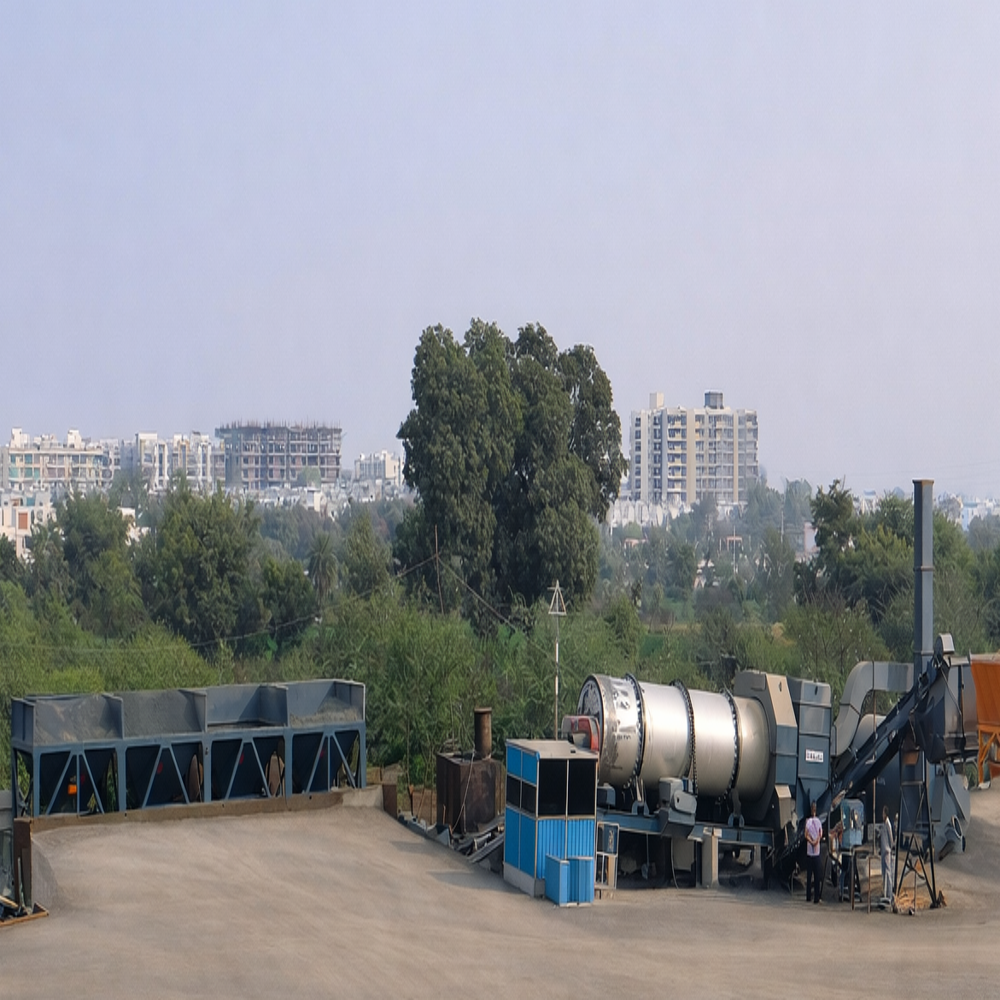

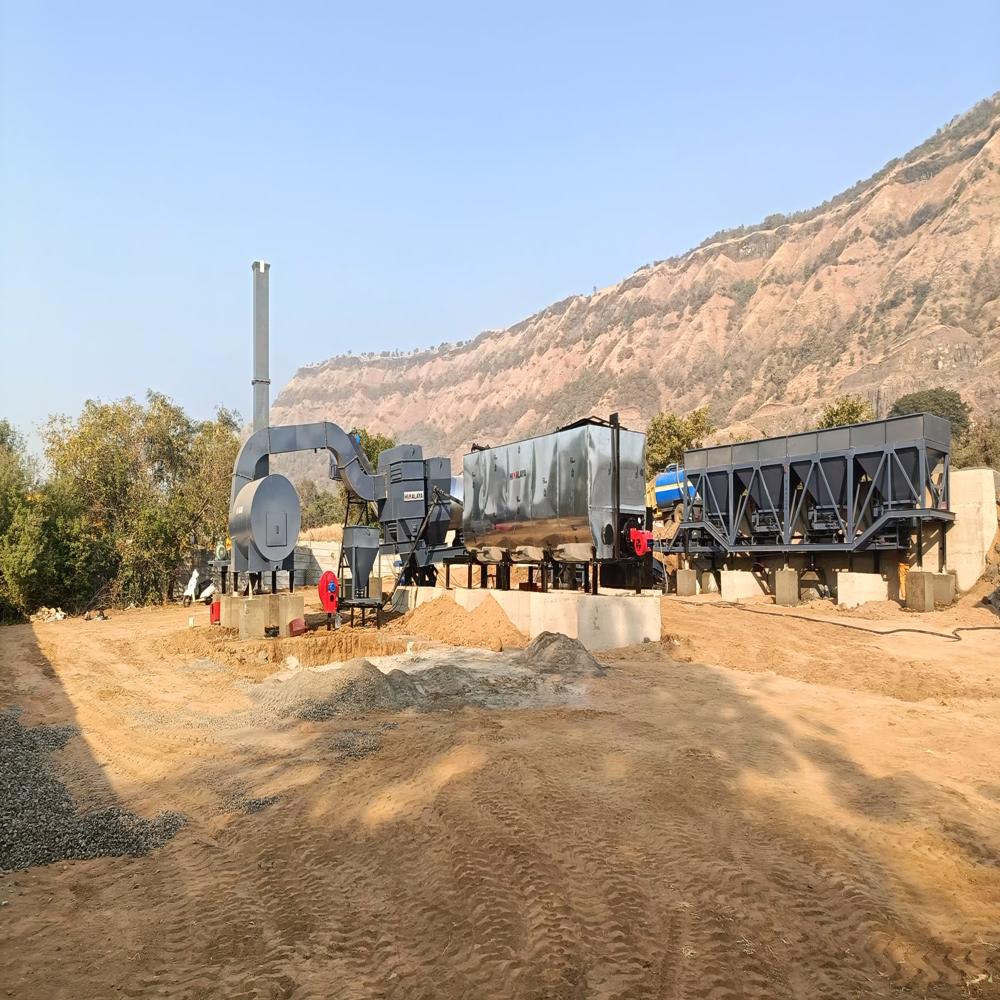

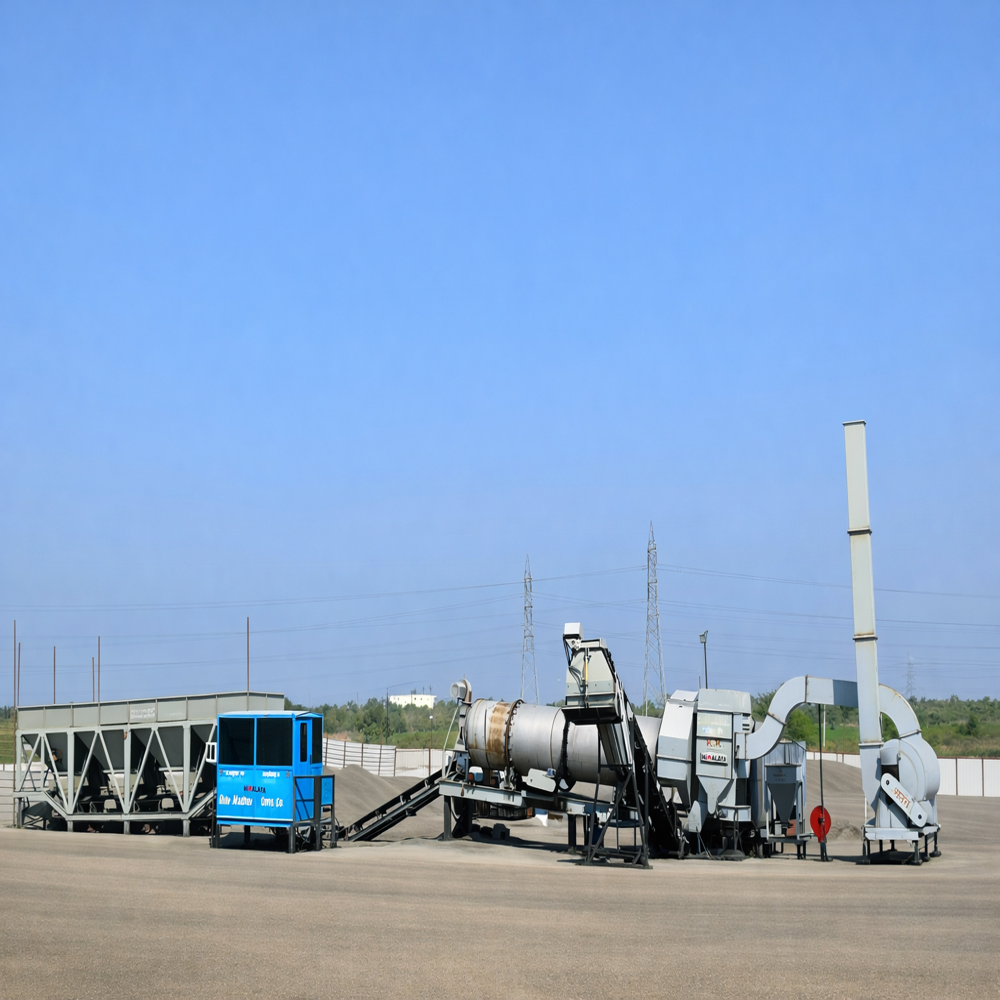

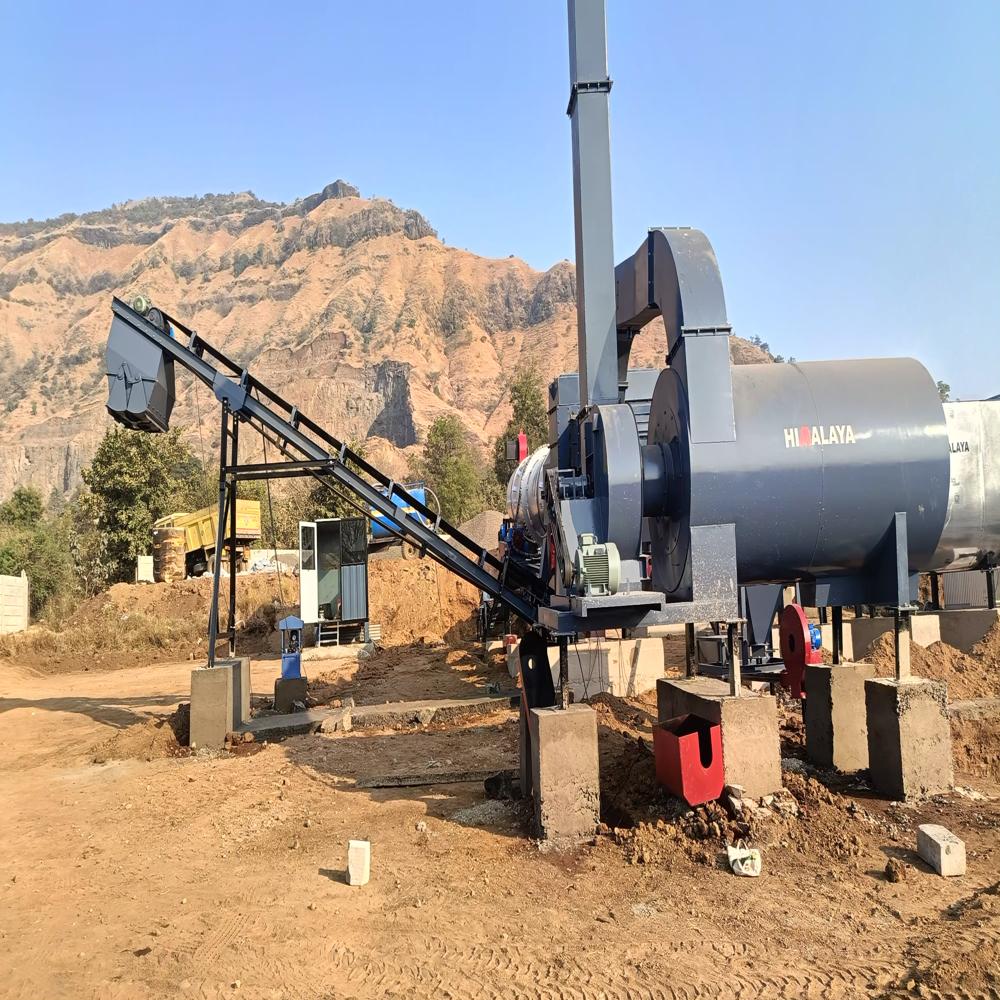

Drum Mix Plant

• Air Pressure
• 6-8 Bar

• Automatic Grade
• Automatic

• Capacity
• 20-150 TPH T/hr

• Color
• Yellow

• Compressor Type
• Electric Screw or Piston Compressor

• Computerized
• Yes

• Cooling System
• Human Machine Interface

• Coverage Area
• 75 Square Meter (m2)

• Dimension (L*W*H)
• 15 5 6 Meter (m)

• Driven Type
• Diesel Engine Direct Drive

• Drum Diameter
• 1000-2150 Millimeter (mm)

• Fuel Type
• Diesel/LDO

• Hole Size
• 50-60 Millimeter (mm)

• Hopper Capacity
• 6 10 Cubic Meter (m3)

• Material
• Mild steel

• Mount Type
• Stationary / Fixed

• Noise Level
• 85 db

• Power
• 80-450 Horsepower (HP)

• RotorDiameter
• 1000-2150 Millimeter (mm)

• Size
• 15 5 6 m

• Tank Dimensions (Mm X Mm X Mm)
• 2.5 x 1.8 x 3.5

• Tank Material
• MS

• Temperature
• 150 180 Celsius (oC)

• Type
• Asphalt Mixers

• Vibration Frequency
• 50 Hertz (HZ)

• Warranty
• Yes (1 year)

• Weight
• 30000-35000 Kilograms (kg)

• Working Width
• 3.5 4.5 m

• Air Pressure
• 5-7 kgf/cm2

• Automatic Grade
• Automatic

• Capacity
• 30-150 T/hr

• Color
• Grey & yellow

• Compressor Type
• Needed

• Computerized
• Yes

• Cooling System
• PLC Control

• Coverage Area
• tationary installation footprint Square Yard (yd2)

• Dimension (L*W*H)
• 15*3*4.5 Millimeter (mm)

• Driven Type
• Electric Motor with Gear Drive

• Drum Diameter
• 1000-1850 Millimeter (mm)

• Fuel Type
• Diesel / LDO

• Hopper Capacity
• 4 Bin Feeder (capacity as per model) Cubic Meter Per Hour (m3/h)

• Material
• Steel, Metal

• Mount Type
• Mobile/Trailer Mounted

• Noise Level
• 70 db

• Power
• 40-120 Horsepower (HP)

• RotorDiameter
• 1000-1850 Millimeter (mm)

• Size
• Stationary, robust construction

• Tank Dimensions (Mm X Mm X Mm)
• Customized as per capacity

• Tank Material
• MS (insulated bitumen tanks)

• Temperature
• 160-180 Celsius (oC)

• Type
• Asphalt Mixers

• Vibration Frequency
• 50 Hertz (HZ)

• Warranty
• Yes

• Weight
• 25000-35000 Kilograms (kg)

• Working Width
• Standard Asphalt Drum Width

• Air Pressure
• 5 7 kgf/cm2

• Automatic Grade
• Automatic

• Capacity
• 20-45 Ton

• Color
• Grey & Yellow

• Compressor Type
• Needed

• Computerized
• Yes

• Cooling System
• PLC Control

• Coverage Area
• Compact footprint easy relocation Square Yard (yd2)

• Dimension (L*W*H)
• 12x2.5x4 Meter (m)

• Driven Type
• Electric Motor with Gear Drive

• Drum Diameter
• 1000-1200 Millimeter (mm)

• Fuel Type
• Diesel/LDO

• Hole Size
• As per sieve design & screening system Millimeter (mm)

• Hopper Capacity
• 4 Bin Feeder (capacity as per model) Cubic Meter Per Hour (m3/h)

• Material
• MS

• Mount Type
• Mobile (on wheels for easy towing)

• Noise Level
• 70 db

• Power
• 40-90 Horsepower (HP)

• RotorDiameter
• 1000-1200 Millimeter (mm)

• Size
• Compact & Mobile Unit

• Tank Dimensions (Mm X Mm X Mm)
• Customized as per model

• Tank Material
• Ms

• Temperature
• 160-180 Celsius (oC)

• Type
• Asphalt Mixers

• Vibration Frequency
• 50 Hertz (HZ)

• Warranty
• 1 Year (against manufacturing defects)

• Weight
• 18000-25000 Kilograms (kg)

• Working Width
• Standard Asphalt Drum Width
